The Columbia Precision Tang Peep Sight

For Winchester Lever Action Rifles

Elevation & Windage Adjustable

Mounting Screws Included

Target Aperture Included

Milled Steel Parts

Columbia Precision

P. O. Box 301

Timnath, CO 80547

beckra@ezlink.com

​Short Post Sight

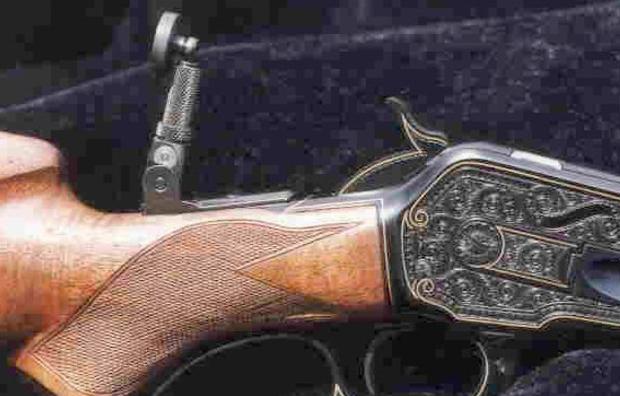

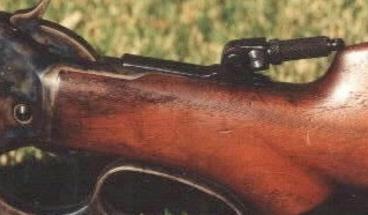

The Tall Post Sight ($ 185.00  ppd. in U.S.) is designed to fit rifles with a long rearward throw to the bolt when the action is opened, and larger  frame actions. Examples are Winchester Models 1876 and 1886. The sight post is attached rearward on the upper tang, nearer the comb of the stock. This allows for the longer bolt throw. To fold down completely flat,  the comb of the stock must be altered (cut back).

​Tall Post Sight

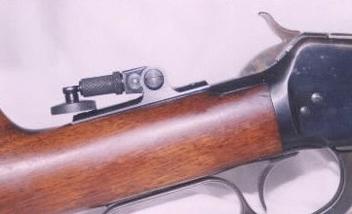

The Short Post Sight ($ 165.00 ppd. in U.S.)  is designed to fit rifles with a standard rearward throw to the bolt when the action is opened, standard frame sizes, and/or single shots. Examples are the Winchester Models of 1866, 1873, 1885, 1892, 1894, 53, 55, 64, 65 . The sight post is attached forward on the base, near the hammer.

Columbia Precision

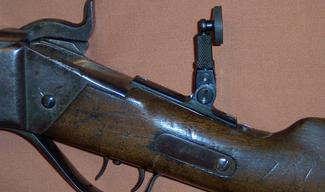

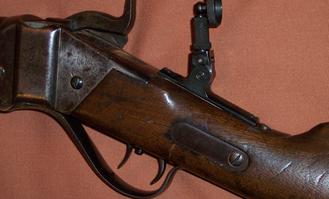

Variations can be made to suit some alternate applications. Illustrated on a Sharps above, is a Short Post Sight on the standard base (left) close to the hammer. On the right is a Short Post Sight on a typically Tall Post base, toward the comb of the stock. A Tall Post could also be used on either base, giving some flexibility for height of sighting aperture depending on size of action, front sight height, or range of shooting distance. It should be kept in mind that this is a relatively simple tang sight, not a long range Vernier sight, and is comparatively useful out to between 200 and 400 yards, depending on bullet weights and loads. We have more than 20 years experience with these particular tang sights, and will advise as to their capabilities when requested. (It should be noted that the base for a Sharps is a different hole spacing than for Winchesters, and will probably need some machining.)


 TO ORDER:

Simply go to the "Contact Information" tab at the top, and call or email.

There is quite a bit of information contained in the section "Technical Information" and we encourage you to read it.
